Fractioning Motion paths – workflow
Lieve is a civil engineer (ir) and a professional musician. After years of teaching and research (project management/eLearning/instability) she is now a freelancer specializing in advanced Adobe Captivate as trainer and consultant. Her blog is popular with Captivate users worldwide. As an Adobe Community Expert and Adobe Education Leader, she has presented both online and offline. Since 2015 she is moderator on the Adobe forums and was named as Forum Legend (special category) in the Wall of Fame. In 2017 Adobe Captivate users voted for Lieve as a Top Content Experience Strategist.
Legend 245 posts
Followers: 422 people
(0)

Intro

Recently I posted a Captivate project showing the use of fractioned motion paths? If you missed it, here is the link:

Fractioning Motion Paths – eLearning (adobe.com)

This blog will explain the needed steps to create those motion path slides, and the action to trigger the move along the motion path fractions:

  1. Create the motion path, and edit its duration based on the number of fractions.
  2. Create the button and its advanced action:
    1. Decision 1 will manage the motion and pausing, and a tracking variable if you want a second decision to be done when all parts have been deployed.
    2. Decision 2 will be done when the path has ended.
  3. Test the interaction, it will probable need tweaking the path length and fraction times. Moreover if you allow to revisit the slide, you may need an On Enter action.

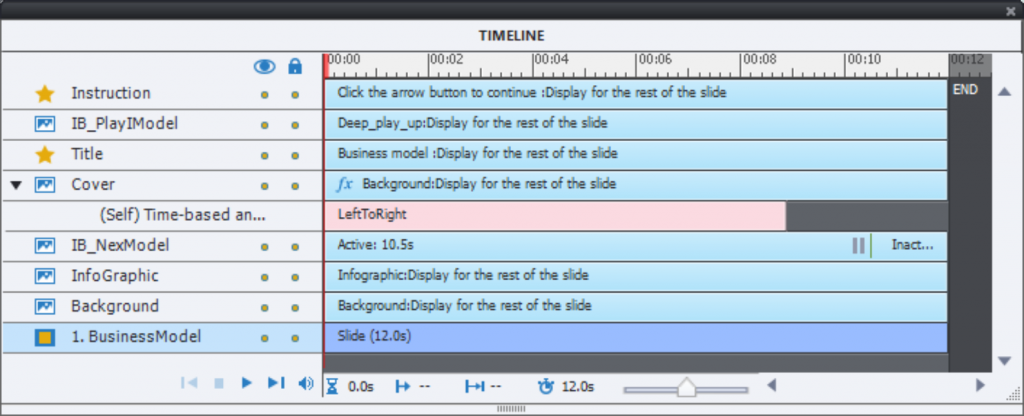

A more detailed explanation will be done using the first example ‘Business Model’ to illustrate. Screen the timeline for this slide:

Background is a a shape filled with a gradient. That shape was duplicated to be a cover, which is stacked on top of the Infographic (with the images) and the Next button. The cover has the same size as the slide and will have the motion path effect attached. On top of the cover you’ll see the Play button (no pausing point), title and instruction text. The Next button has a pausing point which needs to be after the end of the motion effect.

Workflow

Step 1: Motion path

The effect applied to the cover is a simple Left-to-Right motion path applied to a cover. It has no sense to add easing to any motion path, because easing would be applied to the start and/on end of the complete path, but you’ll use it in fractioned form. This linear path needs to be fractioned in 6 parts. I used a vertical guides grid to visualize the 6 fractions, and make sure that each guide is in between two images. Have a look at this screenshot, showing the guides and their setup:

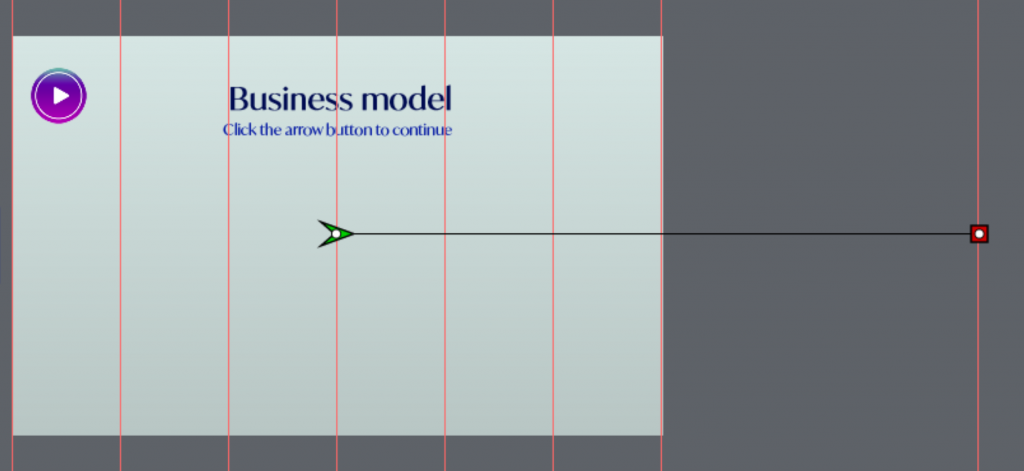

Motion path appears with end and start points and those points are always connected to the center of the bounding box of the shape. The start point is at 1024/2px = 512px because the project width is 1024px. You need to extend the length of the path by moving the end point horizontally (keep SHIFT key pressed) to the X coordinate 512+1024px = 1536px. For that reason I added another vertical guide at 1536px. Turning the snap on for the guides helps to position the end point. See screenshot:

For the duration of the Effect, you have to choose the time you want to use for each part. I found that using between 1 and 2 seconds is fine. As you can see in the timeline screenshot above, for this slide a duration of 1.5secs was chosen, leading to the Effect duration of 9secs. If you look closer to the Timeline, you’ll see that the effect duration is slightly shorter, because of step 3: tweaking.

Step 2: Action for Play button

Basic setup

At first sight the needed advanced action for the Play button seems to be rather simple.:

  • Pause the slide On Enter.
  • For the Play button use this sequence:
    • Continue      to release the playhead, the motion effect will start
    • Delay Next Actions by 1.5 seconds          for the Business model slide 1.5seconds is 9secs/6
    • Pause      to pause the motion effect before the next step (see the guides in the first screenshot above)
  • The Next button will be uncovered in the last step, has a pausing point.

However, there is no way to prevent the learner to click the Play button after the motion effect ended, and the Continue command would then override the pausing point of the Next button, which you probably want to avoid. To prevent this you need a way to track the end of the motion path. Using a variable v_counter for tracking is an easy way. Although you could use one conditional decision, I like to separate the advanced action in two decisions. Have a look at this screenshot of the basic PlayMotion action:

Supposed here is a starting value of 0 for the variable v_counter. When all 6 parts have been ‘discovered’ the Play button will be hidden. It could be possible to replace that Hide action by a pure Pause action, but it would lead to frustrated learners.

If you try out this basic action for the Business Model slide, you’ll have a flickering problem. That has been a pain since many versions. In the Tweaking section of this blog, I will show you how to solve this. Moreover in the video displayed in the previous post, you’ll see that the first part of the effect is deployed immediately. There is also need for an On Enter action on all the slides, to reset everything in the original situation including the value of the counter variable.

Extending Setup

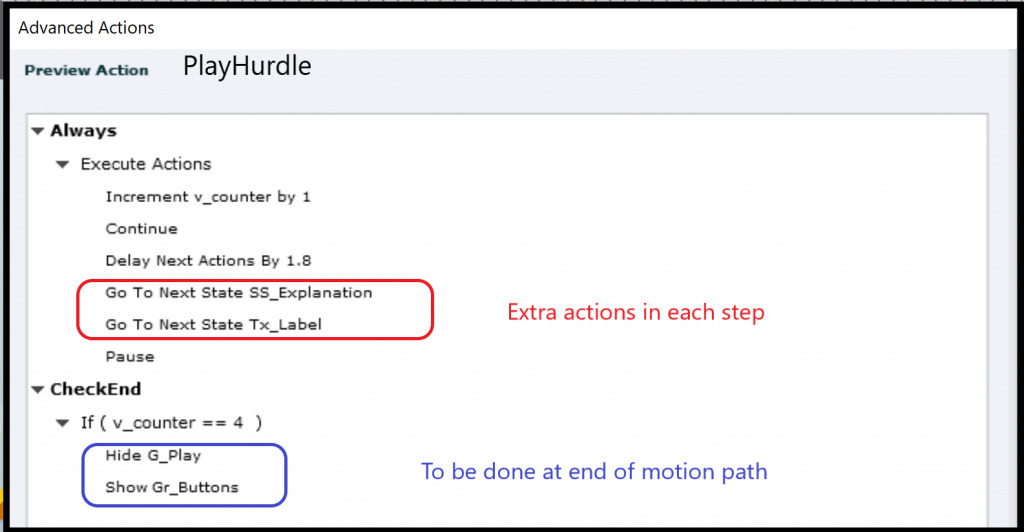

This simple slide didn’t need to have another action to be done besides part of the motion effect. That is not the case for the Steps nor the Hurdles slides. The extra actions need to be inserted before the Delay command in the Always decision. Look at the versions for the Hurdles slide. Multistate objects were used to show explanations. There are 4 parts. At the end the Play button (is in a group with a Tooltip) needs to be hidden, and the group of extra buttons made visible:

Step 3: Tweaking

Timing

When testing the project with F11, Preview HTML in Browser, you may experience that the timing is not perfect: some parts don’t show up completely or the next part will be started too early. There are two ways to tweak this timing, and often both are needed:

  1. Decrease the total time of the motion effect (Timeline panel or Timing Properties). That will speed up the motion, more will be shown with each part. If you look at the first screenshot, Timeline panel for the Business Model slide, you see that the duration of the effect is now 8.9secs instead of the original 9secs. For the Steps slide, I reduced the original 10secs (5steps of 2sec) to 9.7secs, for the Hurdles slide 5secs was reduced to 4.8secs
  2. Decrease the Delay time in the advanced action for the Play buttons. You could see in the Hurdles action the change to 1.8secs.

On Enter action

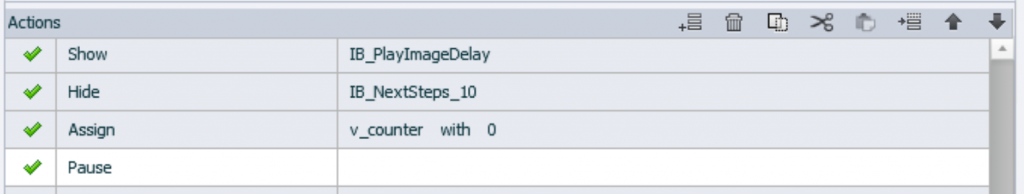

You’ll need such an action to reset the situation if the learner is allowed to revisit the slide, and also to be able to reuse the unique variable v_counter.  Whenever possible, avoid to create multiple variables if you can reuse the same variable. Here is a simple On Enter action for the Steps slide:

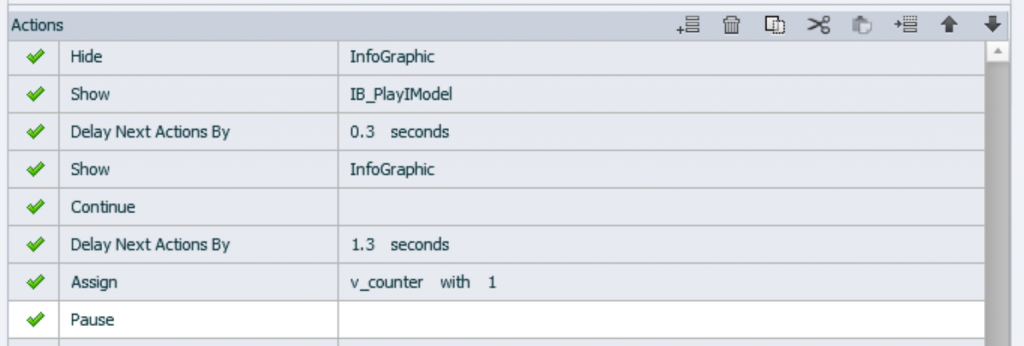

As promised, here is the On Enter action for the Business Model slide, which is more complicated because it solves the flicker issue, and will show the first part of the image (Hence the Assign to 1 command for the counter variable):

To avoid the flickering (showing the InfoGraphic image) that image is first hidden and only shown after 0.3secs. The starting value of the variable is now 1 instead of 0. To deploy the first part of the infographics you’ll see the same actions as in the Play button action. The total delay for this first part is 1.6secs.
